MODEL- DIAMOND

Washrooms will be closely scrutinised by all who use them and first impressions are vital, especially in public areas such as nightclubs, retail outlets and leisure facilities. The appearance of the restroom and its associated facilities can make or break a customers opinion of the whole enterprise. Stainless steel is a natural choice for businesses, especially in environmentally sensitive

Specification

Made from solid grade compact high pressure laminate as per IS:2046 and EN 438 manufactured under high specific pressure > 5 MPa and temperature >°120 C with bunch of kraft papers impregnated with thermosetting phenolic resin and decorative papers made of Alpha cellulose fiber impregnated with thermosetting melamine resin which provide superior scratch, abrasion, heat, chemical, impact, graffiti & moisture resistance along with anti-bacterial properties.

Hardware

Door Knob

Indicator Lock

Cloth Hanger

SS Hinges

Support Legs

Tubular Holder

Section

F Channel

Door Stopper

Top Rail

U Channel

Component Description
Restroom Partitions Width: 900-1200 mm
Depth: 1550-1800 mm
Height: 2000 mm (including 150 mm gap from bottom)
Door Width: 610 mm
HPL Compact Board Specification Made up of layers of cellulose fibers impregnated with thermosetting phenolic resin and decorative design papers on both sides. Core is craft paper impregnated with special melamine resin.
Manufactured with heat (1550 degrees Celsius) and high pressure (9MPa / 90 Bar).
Properties: Superior scratch, abrasion, heat, chemical, impact, graffiti, and moisture resistance, anti-bacterial properties.
Doors Made of 12 mm thick SGH RESTROOM HPL compact panel.
Supported by 3 stainless steel 304 hinges affixed to the pilasters.
Includes stainless steel coat hook and door knob.
Mid & End Panels Made of 12 mm thick SGH RESTROOM HPL compact board.
Includes stainless steel lock cum indicator and aluminum door stopper profiles with silicon rubber for noise dampening.
Middle Divider Made of 12 mm thick SGH RESTROOM HPL compact board.
Affixed with stainless steel 304 U-channel at ends for stability. Sizes as per drawing.
Hardware & Accessories

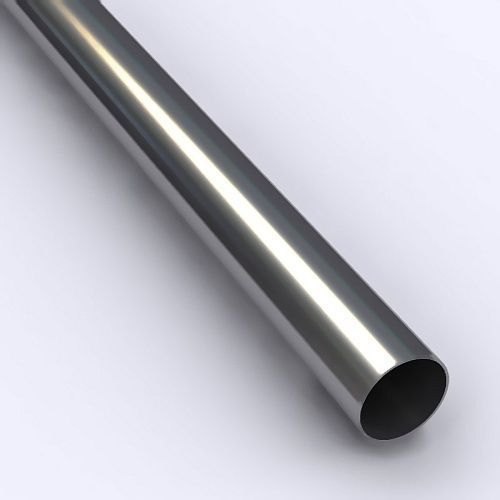

  • Stainless steel Round pipe SS 304 Top rail (32 mm x 32 mm x 3m)
  • Stainless steel SS 304 U-Channel Wall section (25 mm x 16 mm x 1.829 m)
  • Stainless steel SS 304 Door H stopper section (20 mm x 12.5 mm x 1.829 m)
  • Stainless steel SS 304 90-degree corner section (40 mm x 40 mm x 1.829 m)
  • Adjustable leg (diameter 60 mm) made from stainless steel grade 316 with clearance height of 100-150 mm, Surface finish: satin matt & lacquer coated
  • Stainless steel grade 304 Spring-loaded butt hinges, Surface finish: satin matt & lacquer coated
  • Stainless steel grade 304 Coat hook with rubber stopper, Surface finish: satin matt & lacquer coated
  • Stainless steel grade 304 lock cum privacy indicator, Surface finish: satin matt & lacquer coated
  • Round Door knob (diameter 30 mm) with grooves for better hand grip, made from stainless steel 304 grade, Surface finish: satin matt & lacquer coated
  • Stainless steel Tubular Holder
  • Wall Bracket fitting SS 304
  • Silicon Rubber for noise defending
  • Stainless steel grade 304 screws
  • Anti-rotation nylon polyamide grade 6 expandable wall plugs
Supervision Work to be completed as per drawing, under supervision of engineer in-charge and company experts.
