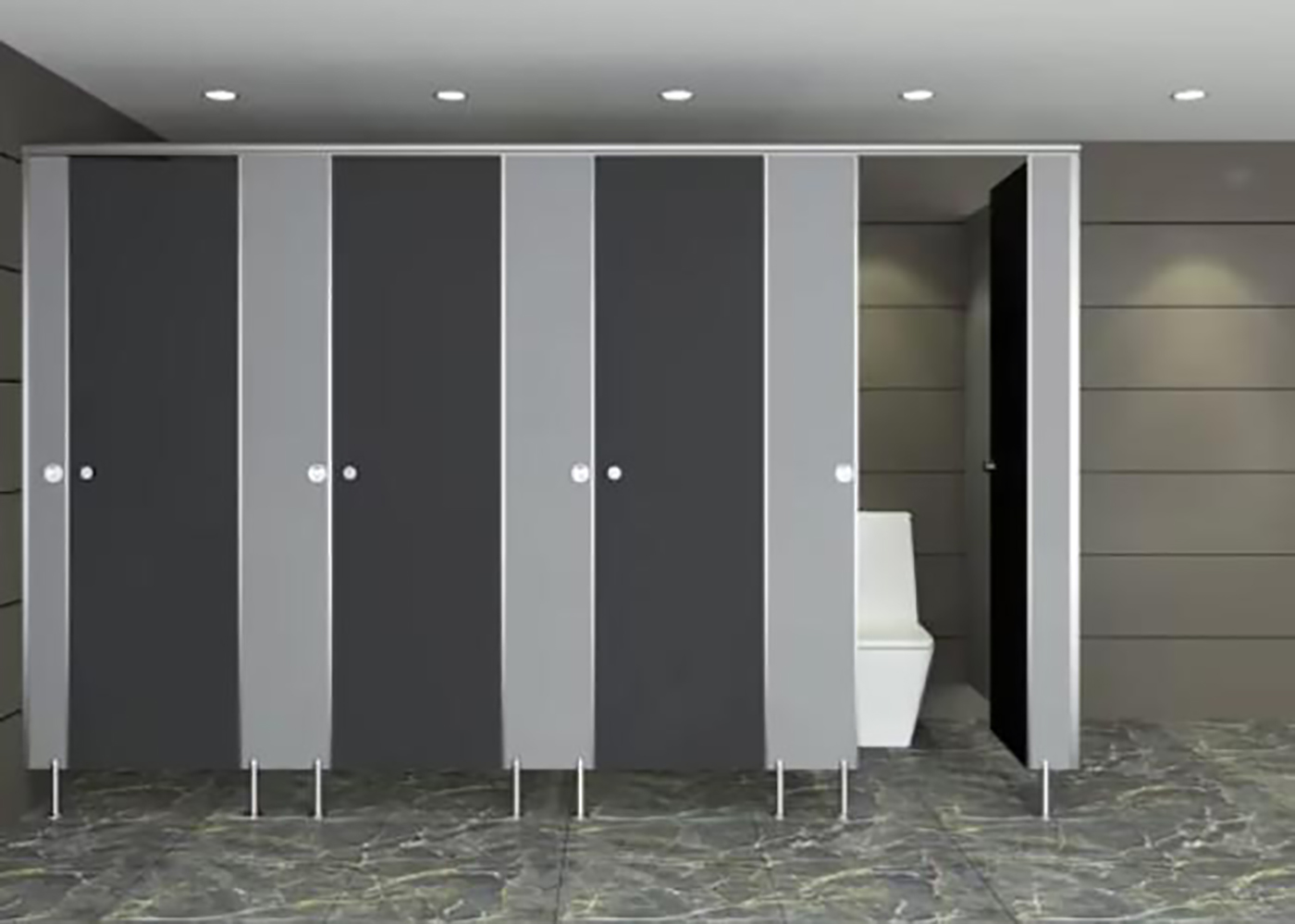

SS elegance series

Perfect for everyday use, the SS elegance series is unrivalled in durability at its price point and complemented by our exclusive range of high quality polished aluminum hardware. Available in a selection of colours and patterns, we can design and produce dry area washrooms to meet your specific needs.

Specification

Made from solid grade compact high pressure laminate as per IS:2046 and EN 438 manufactured under high specific pressure > 5 MPa and temperature >°120 C with bunch of kraft papers impregnated with thermosetting phenolic resin and decorative papers made of Alpha cellulose fiber impregnated with thermosetting melamine resin which provide superior scratch, abrasion, heat, chemical, impact, graffiti & moisture resistance along with anti-bacterial properties.

Hardware

Door Knob

Indicator Lock

Coat Hook

SS Hinges

Support Legs

Section

F Channel

Door Stopper

U Channel

Top Rail

Item Description Specification
Restroom Partitions Supply and installation of SGH RESTROOM WALL HUNG partitions. Width 900-1200mm x Depth 1550-1800mm x Height 2000mm, Door Width 610mm.
HPL Compact Board Made up of layers of cellulose fibers impregnated with thermosetting phenolic resin and decorative design papers. Core is craft paper impregnated with melamine resin. Manufactured with heat and high pressure for superior resistance (scratch, heat, impact, moisture, etc.).
Doors 12mm thick HPL compact panel supported by 3 stainless steel 304 hinges. Includes coat hook and door knob.
Mid & End Panels 12mm thick HPL compact board with stainless steel Lock cum Indicator. Aluminum door stopper profile with silicon rubber for noise dampening. Aluminium SS finish top support channel.
Middle Divider 12mm thick HPL compact board, affixed with Aluminium Chrome plated U-channel at ends. Divider sizes as per drawing.
Hardware & Accessories
  • Aluminium SS Finish chrome plated Top Channel (100 mm x 32 mm x 3mtr).
  • Aluminium SS Finish chrome plated U-Channel Wall section (25mm x 16mm x 1.829 mtr).
  • Aluminium SS Finish chrome plated Door H stopper section (20 mm x 12.5 mm x 1.829 mtr).
  • Aluminium SS Finish chrome plated 90 degree corner section (40 mm x 40 mm x 1.829 mtr).
  • Stainless steel grade 304 Spring loaded butt hinges, satin matt & lacquer coated.
  • Stainless steel grade 304 Coat hook with rubber stopper, satin matt & lacquer coated.
  • Stainless steel grade 304 lock cum privacy indicator, satin matt & lacquer coated.
  • Round Door knob (diameter 30mm) made from stainless steel 304 grade.
  • Silicon Rubber for noise defending.
  • Stainless steel grade 304 screws.
  • Anti-rotation nylon polyamide grade 6- expandable wall plugs.
